FULL MWD SYSTEM

The ultimate in rugged design. The MWD kit has highest mud pulse data rates available for directional companies. 4 bits/second, that’s 24 second full surveys and 2-3 second telemetry updates.

With a maximum operating temperature of 175C (347F), the MWD kit offers a rugged design built to withstand the most extreme drilling conditions. Three times faster data transmission ensures operators see added value compared to conventional mud pulse.

A patent pending, printed circuit board rail mount along with a proprietary snubber design, dampens shock and vibration, reducing the stress on the internal electronics which leads to longer life and dramatically reduces problems from occurring.

An innovative latching muleshoe design provides downhole reliability while remaining retrievable and re-seatable. Integrated rubber fin centralizers along with custom rotary connectors, allow for quick connections in the field. With a unique pulser bottom end, the MWD kit offers the highest LCM tolerance in its class.

Benefits

High LCM Tolerance over 100 lbs/barrel
High Efficiency and Power Consumption Optimized Pulser
Date rate 4-6 bits/seconds
Retrievable Latch down Muleshoe
Rated to 350F (175)
Independent Module Memory
Capable of 49 downlinking options

7 data sequences
7 pulse width

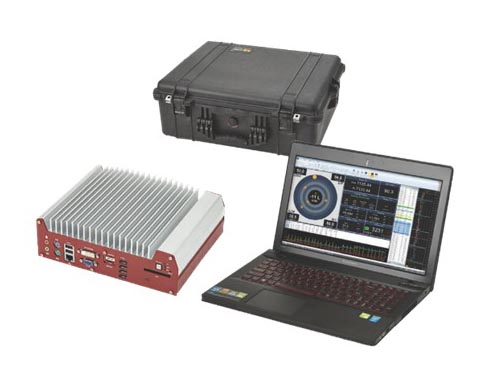

Integrated gamma LWD logging software
Wireless connection to Rig Floor Display
Programs tool string and decoder
Tool diagnostics and surface testing capabilities
Single application for MWD, tool programming, and tool diagnostics
Real-time display of decoding data and historical view of mud pulse data
Integrated survey sheet with plan and vertical section view
Display and transmit WITS data from external sources
Visual and audible alerts to decoding events
Full screen customizable drillers view for rig floor display
